GK3V PRO Mini PC N5105 DDR4 8GB SSD 128GB Windows 11 PRO Triple Display Bluetooth WiFi GK3 N95/N100 Desktop Computer J4125 12GB
$98.50 – $155.50
Minimum Order Quantity(MOQ)
Related Products
- Processor Main Frequency: 2.0GHz
- Use: Multimedia
- Memory Capacity: 8GB
- Hard Drive Capacity: 128GB
- Model Number: GK3V PRO
- Processor Brand: Intel
- Processor Model: N5105/J4125/N95/N100
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: SZBOX
- Origin: Mainland China
- Certification: CE
- Type: MINI PC
- RAM: DDR4
- SSD: M.2 2280 SATA
- Display: Support VGA+ Dual HD Triple display
- WiFi: IEEE 802.11 a b/g.n. ac
- Bluetooth: BT 4.2
- Systerm: Windows 11 Pro
- LAN: 10M/100M/1000M Self- adaption
- N5105: Up to 2.9GHz
- N95/N100: Up to 3.4GHz
- J4125: 2.00 GHz Up to 2.7GHz
- J4125 Memory: Onboard
|
Type |
Features |
Spec |
|
Product |
Device |
MINI PC |
|
Special |
MINI PC, Ad Terminal Box |
|
|
Device size |
130mm*130mm*45mm |
|
|
Case Material |
Plastic |
|
|
Weight |
Net Weight 360g,Gross Weight 715g |
|
|
Hard configuration |
||
|
Type |
features |
Description |
|
CPU |
Platform |
IntelAlder Lake-N |
|
Speed |
1.7GHz |
|
|
Max frquency |
3.40 GHz |
|
|
power disspation |
15W |
|
|
Memory |
Type |
DDR4 SO-DIMM |
|
Storage |
Max 16GB |
|
|
Storage |
EMMC |
Yes |
|
SSD |
M.2 2280 NGFF,Max 2TB |
|
|
2.5 ”HDD/SSD |
Support,Max2TB |
|
|
TF card |
Not supported by default |
|
|
RTC |
BIOS support |
Real-time clock,timing boot |
|
Auto power on |
BIOS support |
Yes |
|
TPM |
CPU interation |
Support TPM 2.0 |
|
Triple display |
Video output |
Support2*HD +VGA |
|
LED |
status indicator |
Blue light – Swith on |
|
Network |
||
|
Type |
Features |
Description |
|
WIFI |
Type |
M.2 wifi 5 |
|
Agreement |
PCIE |
|
|
Bluetooth |
Type |
Bluetooth 4.2 |
|
Agreement |
USB2.0 |
|
|
3G |
build-in |
No |
|
4G |
build-in |
No |
|
Ethernet |
LAN1 |
10M/100M/1000M Self-adaption |
|

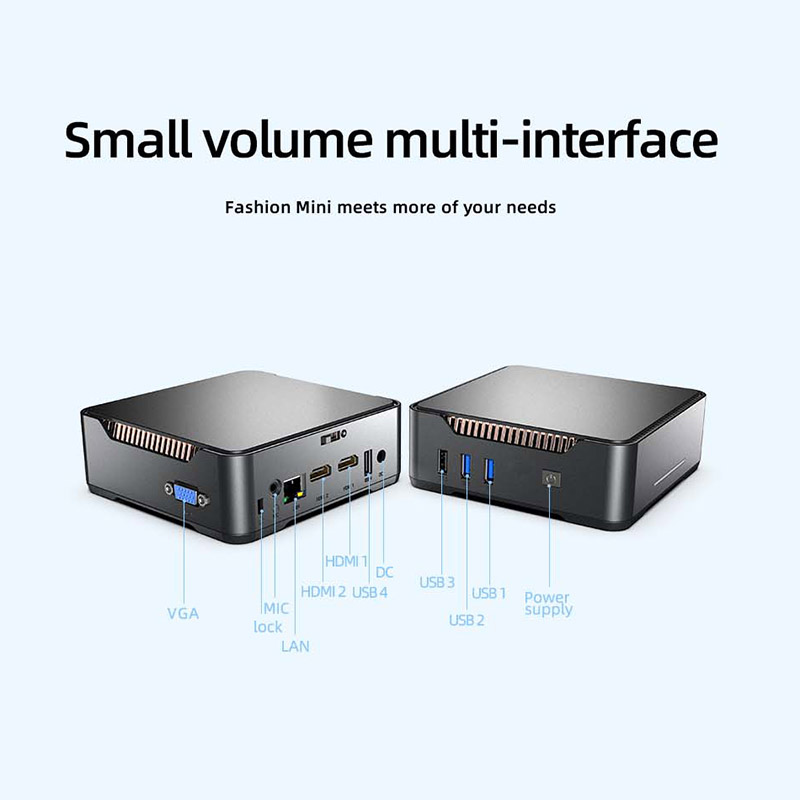

Ports |
||
|
Type |
Features |
Description |
|
USB |
USB2.0 |
USB2.0 Type-A*2 |
|
USB |
USB3.0 |
USB3.2 Type-A*2 |
|
TF |
expand external memory |
No |
|
HD |
Audio/Video output |
HD 2.1 Type Ax2 |
|
VGA |
Video output |
No |
|
RJ45 |
Gbe |
RJ45 x1 |
|
type_c |
data transfer |
No |
|
POWER |
power |
x1 |
|
DC IN |
DC IN |
5.5/2.1mm DC Jack x1 |
|
Audio-in/out |
Audio-in/out |
3.5mm Phone Jack x1 (Two-in-one interface) |
|
Antenna1 |
FPC |
WiFi 2.4+BT x1 |
|
Antenna2 |
FPC |
WIFI 5.0 |
|
Software configuration |
||
|
Type |
Features |
Description |
|
OS |
OS version |
Win11 Home/Win11 pro/Win11 IOT/Ubuntu |
|
Applied environment |
||
|
Type |
Features |
Description |
|
Environment |
operating temperature |
0~40℃ |
|
storage temperature |
-20~60℃ |
|
|
humidity |
90% @ 40 °C (without condensation) |
|
|
Accessories |
||
|
Type |
Features |
Description |
|
Adapter |
Plug type |
input100~240V 50/60Hz,output 12V/2.5A, |
|
IR remote control |
No |
|
|
VESA |
Yes |
|
Specification: GK3V PRO Mini PC N5105 DDR4 8GB SSD 128GB Windows 11 PRO Triple Display Bluetooth WiFi GK3 N95/N100 Desktop Computer J4125 12GB
|
