Bluetooth Kit MP3 Player Module Bluetooth Audio Decoder Board 2x40W Amplifier DC7V 26V
Product Description
Function Introduction:
Support :Amplifier 2x40W,Wireless bluetooth call functions,double decoding MP3/WMA/WAV format music,record, changing folder,reading USB disk, read SD and MMC card,radio FM,infrared remote control,power off memory,power supply DC 7V-26V .

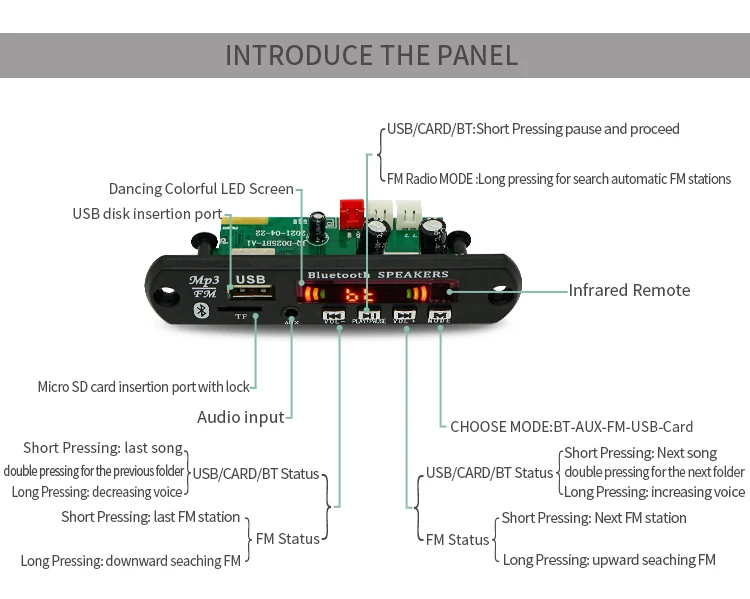

Button Operation Instructions:
1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Wireless BT function, short press is Wireless BT one, long press is volume reduction;
2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Wireless BT function, short press is playing / pause;
3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Wireless BT function, short press is Wireless BT next song, long press is volume reduction;
4,MODE button:switch between USB/SD/FM/AUX/BT functions in turn.
Support :Amplifier 2x40W,Wireless bluetooth call functions,double decoding MP3/WMA/WAV format music,record, changing folder,reading USB disk, read SD and MMC card,radio FM,infrared remote control,power off memory,power supply DC 7V-26V .
Major Functions:
1,Double decoding,support MP3/WMA/WAV format music;
2,Support Wireless BT music and Wireless BT call function;
3,Display with digital tube;
4,Support USB/MMC/SD/MMA card;
5,Power off memory function 24C02;
6,Support 5-10 meters distance infrared remote control operation;
7,Support FM(87.5MHZ-108.0MHZ);
8,Buttons:VOL-/ AUTO / VOL+ / MODE;
9,Support LINE-IN/ LINE-OUT;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30;
12,Support for pause / single loop play / replay all the repertoire.
13.Input DC 7V-26V, Amplifier 2x40W
Button Operation Instructions:
1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Wireless BT function, short press is Wireless BT one, long press is volume reduction;
2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Wireless BT function, short press is playing / pause;
3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Wireless BT function, short press is Wireless BT next song, long press is volume reduction;
4,MODE button:switch between USB/SD/FM/AUX/BT functions in turn.
Specification
|
Product name
|
MP3 Player Bluetooth Amplifier Module
|
|
Amplifier Power
|
2x40W
|
|
Display
|
Dancing Digital LED Dispaly
|
|
Support Functions
|
Wireless BT/fm radio/TF Card/USB/AUX/Remote/record/folders
|
|
Accessories
|
Cables and remote controller
|
|
Voltage input
|
DC 7V-26V
|
|
Sevice
|
OEM/ODM
|
Specification: Bluetooth Kit MP3 Player Module Bluetooth Audio Decoder Board 2x40W Amplifier DC7V 26V
|
